🔌 Kikusui PWR401L

Kikusui PWR401L

Product Page

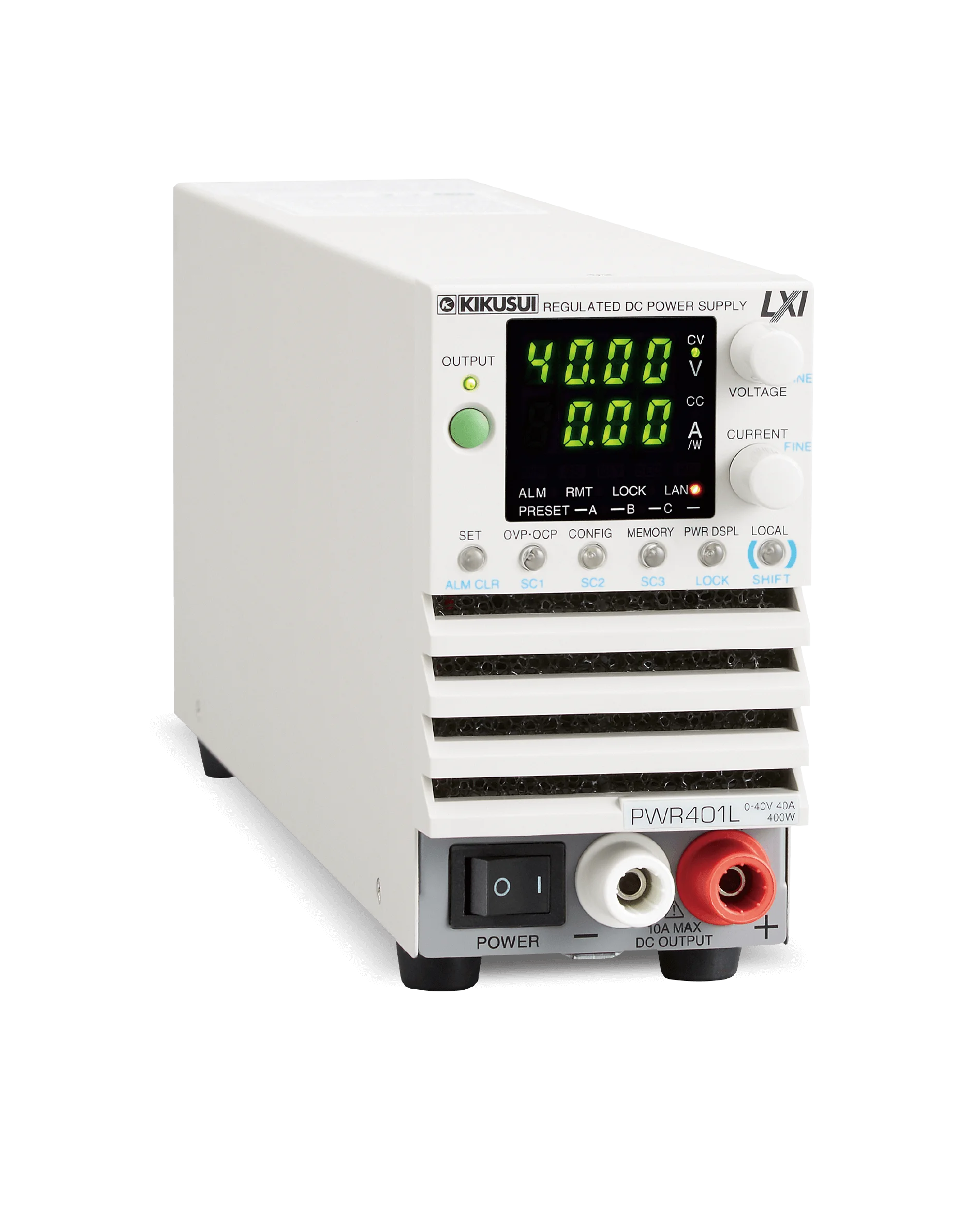

Kikusui PWR 401L

The Kikusui PWR401L is a compact, high-performance programmable DC bench power supply from the PWR-01 series, designed for flexible use in testing, development, and lab environments. It offers a wide output range and full programmability with modern interfaces, making it suitable for both manual bench work and automated test systems. ([KIKUSUI ELECTRONICS CORP.][1])

🔌 Key Specifications

  • Output Voltage: 0 V – 40 V DC (continuously variable)
  • Output Current: 0 A – 40 A (continuously variable)
  • Output Power: 400 W maximum
  • Input Supply: Universal AC input (85 V – 265 V)

📊 Features

  • Programmable control for voltage and current settings with sequence execution capability.
  • Standard digital interfaces: LAN (LXI), USB, and RS-232C for integration with test systems and remote operation.
  • Flexible output range: Wide voltage and current combinations within the rated power envelope.
  • Front panel and rear connections: Includes front-facing output terminals for convenient bench use.
  • Advanced control functions: Includes sequence programming, internal resistance adjustment, bleeder on/off, output delay, and soft start/stop.

🧠 Integration & System Use

The PWR-01 series supports:

  • Sequence programming for automated test workflows.
  • Remote monitoring and control via LAN/USB/RS-232C interfaces.
  • Compatibility with virtual multi-channel bus (VMCB) for networked multi-unit setups.

🔎 More details and settings (including precision specs, protection functions, and interface pinouts) are available in the manual stored in our PIHTI Obsidian vault: 📁 [[Kikusui Power Supplies]]
