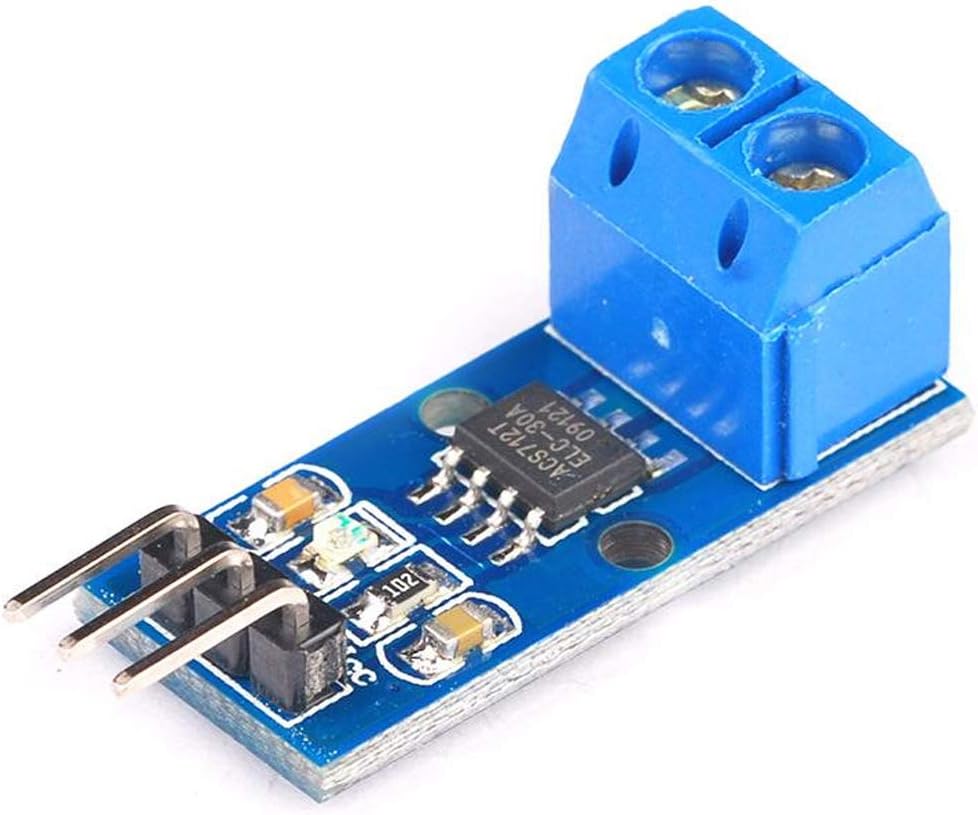

ACS712 Hall Sensor¶
Amazon Module Datasheet In Control Unit
About¶
The device consists of a precise, low-offset, linear Hall circuit with a copper conduction path located near the surface of the die.
Applied current flowing through this copper conduction path generates a magnetic field which the Hall IC converts into a proportional voltage.
Device accuracy is optimized through the close proximity of the magnetic signal to the Hall transducer.
A precise, proportional voltage is provided by the low-offset, chopper-stabilized BiCMOS Hall IC, which is programmed for accuracy after packaging.
Sensitivity¶
| Model | Range | Sensitivity |
|---|---|---|
| ACS712-05B | ±5 A | 185 mV/A |
| ACS712-20B | ±20 A | 100 mV/A |
| ACS712-30B | ±30 A | 66 mV/A |
