WSC1800 Hall SensorΒΆ

Amazon Module Docs

WSC1800 Module WSC1800 specs

AboutΒΆ

The Winson WCS1800 is a linear Hall-effect current sensor with a 9 mm through-hole conductor path.
It measures both DC and AC currents up to Β±35 A, while maintaining 4 kV electrical isolation between the sensed conductor and the sensor electronics.

  • Output: Ratiometric analog voltage, ~2.5 V at zero current, with sensitivity β‰ˆ 72 mV/A
  • Range: 0 – 35 A (at 5 V supply)
  • Features:
    • High isolation design (no need to break existing circuit)
    • Wide supply range: 3 – 12 V
    • Low operating current (~3 mA)
    • 23 kHz bandwidth for AC current sensing
  • Applications: Motor control, load detection, over-current fault protection, intelligent power management

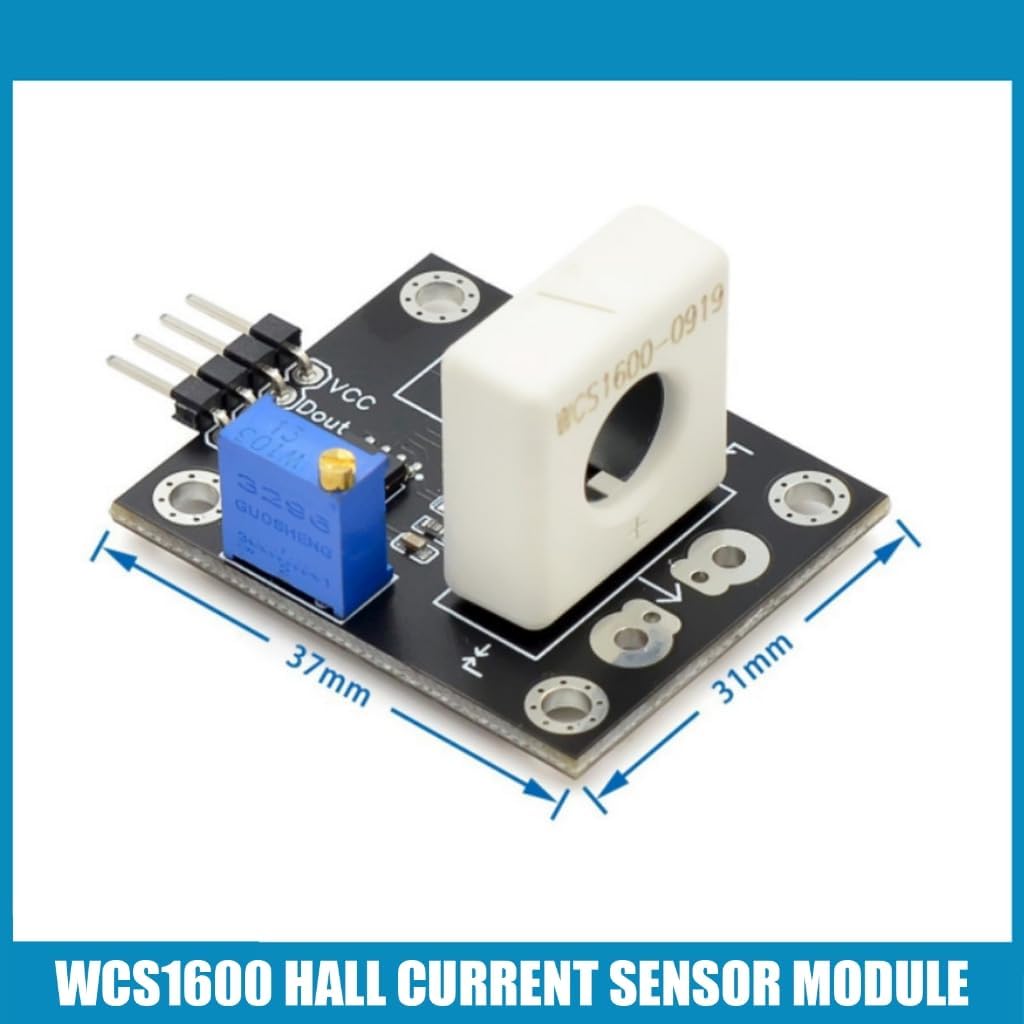

On breakout boards, the sensor is often combined with an MCP602 op-amp/comparator to provide:

  • AOUT – analog output proportional to current (connect via ADC to Raspberry Pi or MCU)
  • DOUT – digital threshold output, set via onboard trimpot (logic signal)

Electrical CharacteristicsΒΆ

T = +25 Β°C, Vdd = 5.0 V

Characteristic Symbol Test Conditions Min Typ Max Units
Supply Voltage Vdd β€” 3.0 β€” 12 V
Supply Current Isupply IP = 0 A β€” 3.5 6.0 mA
Zero Current Vout V0G IP = 0 A (DC Mode) 2.35 2.5 2.65 V
Conductor Through Hole β€” β€” β€” 9.0 β€” mmΒ²
Sensitivity Sens IP = Β±10 A 60 72 84 mV/A
Bandwidth BW β€” β€” 23 β€” kHz
Measurable Current Range MR Vdd = 5V (DC Mode) β€” Β±35 β€” A
Vdd = 5V (AC RMS) β€” 25 β€” A
Temperature Drift Ξ”Vout IP = 0 A β€” Β±1.0 β€” mV/Β°C
Output Noise Vnp-p IP = 0 A β€” 15 β€” mV
Output Noise (filtered) Vnp-p IP = 0 A, C = 0.01 Β΅F β€” 3 β€” mV
