Retention study

Oxygen Effect on Hydrogen Retention in Graphites

Small oxygen additions make graphite retain much more hydrogen.

Oxygen Effect on Hydrogen Retention in Graphites

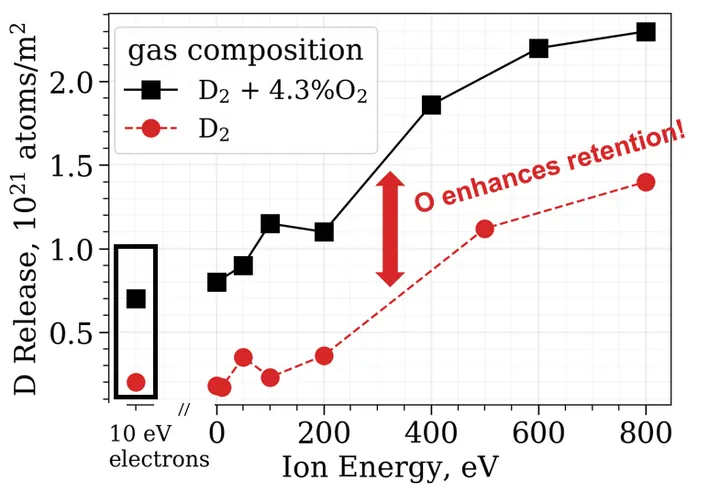

Deuterium release from carbon-fiber composite after irradiation in pure D2 plasma and in D2 + 4.3% O2 plasma. The oxygen-containing plasma produces much higher retained deuterium over the whole ion-energy range, including very low-energy irradiation.

This project came from the very real background of Tore Supra and carbon-wall tokamaks: there is oxygen in the wall. Not a little abstract impurity in a vacuum textbook, but a practical plasma-facing-material problem. Oxygen sits on surfaces, comes from conditioning history, residual water, oxides, leaks, and wall chemistry. Once a hydrogen plasma touches that wall, the problem is no longer "hydrogen on clean graphite."

We wanted to know what oxygen does to hydrogen isotope retention in graphite materials. The experiment was deliberately simple: irradiate carbon materials in deuterium plasma, then add a small amount of oxygen and measure how much deuterium remains by thermal desorption. The plotted result is one of the clearest outcomes: adding only 4.3% O2 to D2 plasma strongly increased deuterium retention in carbon-fiber composite across the whole ion-energy range.

The important part is not only that retention increased. It also increased at very low ion energies, where ordinary implantation should be weak. That told us that the wall was not just passively collecting fast ions. Low-energy plasma particles could activate the graphite surface, dissociate adsorbed water-like molecules, and drive hydrogen and deuterium into near-surface traps. We called this pathway "potential" trapping, to distinguish it from ordinary kinetic implantation by fast ions.

Oxygen made that pathway much stronger. In a tokamak wall, oxygen is therefore not just contamination that changes spectra or fuel purity. It changes the material response itself. A graphite wall exposed to oxygen-containing hydrogen plasma can become a much better hydrogen reservoir than the same wall in nominally clean deuterium plasma.

That was the useful lesson: hydrogen retention in carbon walls is controlled by wall chemistry as much as by ion energy. In Tore Supra reality, where oxygen was a persistent part of the wall history, this meant that cleaning and retention had to be understood together. Oxygen removal was not a separate housekeeping problem; it was part of the hydrogen inventory problem.
