October 2 argon plasma: the PID's first real run, and a two-day hang

Queezz ran an argon discharge on 2026-10-02 to measure electrode voltages against his PIC simulations and to try the plasma-current PID. This page reads the rig's files for that run: why the program hung before it, what the Hall sensor's current means against the discharge supplies, how the PID behaved at each of its three engagements, and a 7.5 s ripple that turns out to be in the cathode drive itself. All times are JST from the rig's own clock. The journal for the day is the vault's Journal/2026/10/2026-10-02.md.

Files analysed

Read-only copies in the repository's git-ignored data/rig/2026-10-02/, with the analysis scripts beside them in analysis/. Nothing on the rig was touched; it was recording a slow 10 s run at the time and was left alone.

File	Rows	Span	SHA-256
cu_20261002_170146.csv	38,168	17:01:46.841661–18:05:27.702412	946227a861742ce8fa072dc6001e7b207fe3e83ef36c8d0165e63c0902a57a8d
kikusui_20261002_170146.csv	6,674	17:01:46–18:05:26	a69162dbb7c241331dcebe9f8050cf02b26d66613a1226e1c666dae16bca0a82
cu_20261002_170125.csv	191	17:01:25–17:01:44	70e7aae2a3bea131d274a26b2b1935a8e21dd0ae2b32ac01501803c000846c62
kikusui_20261002_170125.csv	—	the same 19 s	ab29b636081d3e4ce9e2321771e89766df4de481c5f3205bd1fbb72d57f492e3
controlunit-2026-10-02.log	3,239	the day's lines of controlunit.log	—

The checksums were taken on the rig and again on the copy and agree. The sampling was sound: 0.1001 s mean interval, one gap of 0.62 s at 17:27:05 (a logged I²C retry), three intervals above 0.3 s.

The hang at 17:00 was the two-day run choking the main thread

The program killed over VNC at 17:00 had been started on 2026-09-30 at 17:04 and left recording at 0.1 s. Its own timing lines tell the story. Each delivery of three samples costs an append and a redraw, and both grow with the length of the run, because the whole run is held in memory and copied at every step:

When	Append	Redraw	Total per delivery	Behind real time
09-30 17:05	4 ms	21 ms	27 ms	0
09-30 20:00	109 ms	125 ms	237 ms	0
10-01 00:00	218 ms	240 ms	464 ms	24 min
10-01 09:00	353 ms	384 ms	741 ms	4.4 h
10-01 17:00	447 ms	505 ms	959 ms	9.1 h
10-02 16:00	627 ms	659 ms	1289 ms	24.7 h

A delivery arrives every 0.3 s. Once one costs more than that, some time between 20:00 and midnight on the first evening, the main thread never catches up: it spends all its time on the backlog, so the window stops answering and so does the web view, which reads what the main thread writes. By the kill the backlog was 25.4 hours.

The file shows the same thing from the other side. Its last row is 2026-10-01 15:34:30, and the process was killed at 2026-10-02 17:00: the samples in between were read from the ADC and were waiting in memory to be written, and were lost with the process. cu_20260930_170412.csv is 683,898 rows and 360 MB and ends 25 hours early.

This is the item directions.md has carried since 2026-09-04 ("the whole run is held in memory and copied every step") and again since 4.13.0 ("unbounded history"). It was harmless at 10 s sampling and is fatal at 0.1 s within about four hours. The same growth is visible in today's one-hour run: the append went from 4 ms to 20 ms and the redraw from 21 to 60 ms in the first 26 minutes.

The current: 0.1 A of the gap is the zero, the rest is the scale

The PID held the readout at 0.50 A from 17:27 to 17:53. The Hall sensor's zero was never taken that day (zeros.Ip is 0.0 in every journal snapshot), and the readout with no discharge is not zero:

Stretch	Ip_c	Ip/Vhall
17:02–17:11, supply off	−0.0977 A (sd 9.7 mA)	0.49609
17:23:49–17:24:00, drive at 0	−0.0962 A
17:44:50–17:45:14, PID off	−0.1010 A
17:54–18:05, after	−0.0993 A	0.49603

So a readout of 0.50 A was a Hall current of 0.60 A, and the 0.70 A setpoint at 17:26 was 0.80 A. The offset is the same −98 mA found on 2026-09-30 and it did not move by more than 4 mA across the run. It is not noise and not the supply (the 4.22.0 correction divides by the measured Vhall, 4.976 V all run, with no sag when the discharge lit): it is the sensor resting at 49.6 % of its supply where the settings assume 50.0 %, which is inside an ACS712's offset tolerance and inside the difference between two ADC channels' dividers. Zero Ratio: 0.4961 in settings.yml would remove it for good; pressing Zero Ip before a discharge removes it for a run. The PID does subtract the zero (plasma_current_converted - zero_ip); it had none to subtract.

Against the discharge supplies, the journal's table at 17:38 gives I_pl 0.7 A and I_pre 0.9 A while the Hall current, zero removed, was 0.60 A. What remains after the zero is a scale question, and it is the one the 2026-09-19 page left open: the conversion's 5 A/V (200 mV/A) is provisional and matches no sensor the lab documents. If the part is an ACS712-05B (185 mV/A) the 0.60 A is 0.65 A; to read 0.70 A the sensor would have to be 171 mV/A. I_pl is the anode supply's panel reading (the journal of 2026-09-15 names it so). Two things are needed to close it and neither is in a file: which conductor the sensor is on (anode, preanode or the cathode return — the two supplies read different currents, so they cannot both match), and one calibration with a known current, the step still open from the Hall rework.

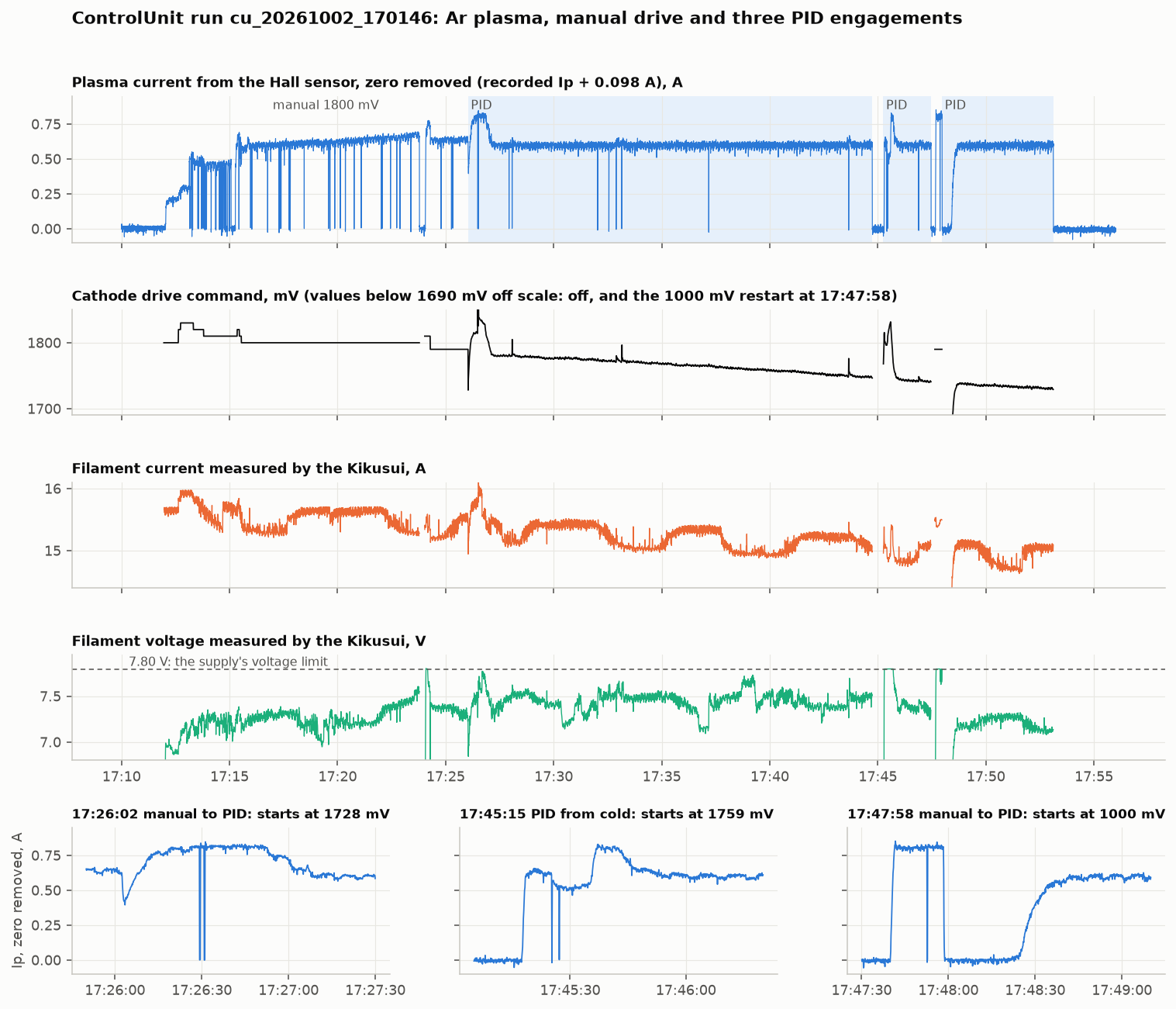

The PID: it regulates, and it starts wherever the clock left it

Holding. From 17:28 to 17:44 the loop held 0.5005 A mean with the same sample noise as manual drive (15 mA, dropouts excluded). To do it, it walked the cathode command down from 1780 mV to 1748 mV, and to 1733 mV by 17:53, as the source warmed: filament power fell from 114 W to 107 W at constant plasma current. Under a fixed manual drive the current is not constant: 1790 mV gave a readout of 0.53 A at 17:25 and 0.71 A at 17:47. That drift is what the loop removed.

Arcs. Dropouts, where Ip falls to its zero for 0.2–0.3 s, came 20 times in the seven manual minutes at 1800 mV (2.8 per minute) and 8 times in the first seventeen PID minutes (0.46 per minute: 5, 2, 1 in successive thirds), then one in the second PID stretch and none in the last 3.6 minutes. The journal's "fewer arcing" is in the data. It cannot be credited to the loop alone: the rate was already falling with time as the source conditioned, and the PID stretch is simply later.

Engaging. The first command after each engagement was different every time, and none was the drive already held:

Engaged	From	Error at engage	First command	What followed
17:26:02, 0.70 A	manual 1790 mV, 105 s	+0.17 A	1728 mV	sag to 0.30 A, 20 s climb
17:45:15, 0.50 A	PID off, 31 s	+0.60 A	1759 mV	lit in 3 s, overshoot to 0.70 A
17:47:58, 0.50 A	manual 1790 mV, 20 s	−0.21 A	1000 mV	plasma out for 26 s, relit by the ramp

All three follow from one line of arithmetic. The loop is almost purely integral (P = 30 mV/A, I = 40 mV/A·s, on a 1000 mV base), and its clock is reset when a manual value is set or the PID is turned off, not when it is engaged. Its first step therefore integrates the error over the whole time since then: 1000 + 40 × error × seconds. That gives 1000 + 40 × 0.17 × 105 = 1723 mV, 1000 + 40 × 0.60 × 31 = 1762 mV, and 1000 + 40 × (−0.21) × 20 clamped at 1000 mV — the three numbers in the file. The first engagement landed near the held 1790 mV by luck; after ten manual minutes at the same error it would have started at the 5500 mV ceiling. The third put the plasma out, which is the journal's "manual to PID failed this time", and then relit it without overshoot only because an integral starting from zero ramps at 24 mV/s.

This is the bumpless-pickup defect already in directions.md (preset the integrator so the first command equals the held drive; start the clock at engage), now with three measured cases to test against.

A ceiling the loop cannot see. The Kikusui's voltage limit is 7.80 V, and the filament reached it three times (17:24:05–10, 17:45:18–42, 17:47:41–57): the voltage sits flat at 7.797 V and the current no longer follows the command. During the cold start the loop raised its command from 1797 to 1831 mV with no effect while the filament warmed at the limit, then overshot when the supply came back into current mode. A loop that knows the supply is voltage-limited should hold its integral there.

The command is recorded. PresetV_cathode carries the PID's command at every sample, and the sidecar's commanded_cathode_mv the same at 2 Hz; /api/state has it as setpoints.cathode_mv. It is not shown on the Cathode card while the PID holds, which is what the journal asked for at 17:47. In manual mode PresetV_cathode is still 0 (the defect noted on 2026-09-15).

The 7.5 s ripple is in the cathode drive, and the plasma follows it

The 0.1333 Hz line known since 2026-09-15 was read as the Hall sensor's supply. With no discharge it is now small, 2.5 mA, which is what the supply correction left. With the discharge on it is 13 mA in amplitude, the same under manual drive and under the PID, and this time it is not an artefact of the sensor:

Stretch	Ip	Kikusui current	Kikusui voltage	Vhall
No discharge, supply off	2.6 mA	0.03 mA	0.03 mV	1.4 mV
Manual 1800 mV	13.5 mA	22.6 mA	10.9 mV	1.4 mV
PID, 17:28–17:36	12.6 mA	20.9 mA	15.8 mV	1.4 mV
PID, 17:49–17:53	13.2 mA	19.3 mA	17.5 mV	1.5 mV

Amplitudes of the best sinusoid between 0.125 and 0.142 Hz; every one lands on 0.1333–0.1334 Hz. The supply's own measurement of the filament current carries the line at 21 mA while the commanded value is constant, and other frequencies in the same record sit at 5 mA. Folded on 7.50 s the shape is a step, about 2.5 s low and 5 s high, 25 mA peak to peak in the plasma current and 37 mA in the filament current.

So the filament current is really being modulated, by about 0.24 % peak to peak, and the discharge current follows at about 0.6 A per ampere of filament current.

The cause is not settled by this run. The cathode DAC is an MCP4725, whose output is a fraction of its own supply voltage, so a 12 mV step on its 5 V supply for 2.5 s out of every 7.5 s would do exactly this, and it is the same 7.5 s the Hall sensor showed while it ran from the Pi's 5 V pin; a ground shift of about 4 mV between the box and the supply's control input would do it too. The two differ in how the step scales: a reference error multiplies the command, a ground shift adds the same milliamperes at every level. This run holds only one level, 15 to 16 A. A filament-only record at two drive levels, no gas and no discharge, tells them apart, and so does a meter or scope on the DAC's supply pin and on its output at the green plug.

Corrected 2026-10-02, the same evening. This section first settled the question with the 2026-09-15 files (a 599 mV conditioning with no plasma, 6.2 mA on 4.94 A, and that evening's discharge, 18–21 mA on 16.5 A: the same 0.12 % at both levels, which reads as a reference error). Queezz ruled the September runs out as measurements: the preanode was grounding through the discharge then (journal 2026-09-09 to 2026-09-11, "PREANODE GROUNDS, 5Ohm after plasma"), and he does not want anything meaningful taken from them. The comparison is kept here as what it is, a hint from files that do not count, and the conclusion drawn from it is withdrawn until a clean record repeats it. The same applies to the 0.78 A against 1 A of 2026-09-15 that an earlier version of the current section quoted. The PID does not reject it: its command moves 0.8 mV at that frequency against the 4–5 mV the disturbance needs. It is 4 % of the discharge current, peak to peak, and most of what looks like noise on a lit Ip.

The filament current also wanders by ±0.2 A over minutes under a constant 1800 mV command (15.3 to 15.7 A between 17:15 and 17:23), which points at the same analogue path.

What the web view did

• Taking over reset the drive to zero. At 17:23:44 the laptop took control from the phone and at 17:23:47 sent cathode drive 0 mV. The Control tab fills its millivolt field once, when the page loads; the laptop's page had loaded before the phone set 1800 mV, so its field still held 0 and the step-down button stepped from there. The field has to follow the rig's applied value whenever this browser is not the one editing it, and a step has to start from the applied value.
• The Cathode cards blinked without the supply being lost. The sidecar has 5,150 answered polls between 17:11 and 17:54 and not one interval above a second (longest query 275 ms). The LAN to the supply was fine; the blinking is in how the page decides freshness.
• The one-hour plot was cut. The browser keeps at most 20,000 samples (STORE_MAX in live.js), which at 0.1 s is 33 minutes; the 2 Hz Kikusui curve reaches further back because it has fewer points.
• Output on and off report the wrong readback. The log says "Kikusui output ON sent, readback 0" and "OFF sent, readback 1" every time: the query follows the write before the supply has changed.
• One I²C read failed at 17:27:05 and recovered in a second, as designed.
